#include <geogram_mesh_builder.h>

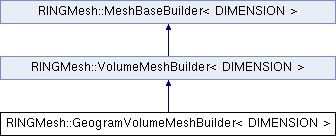

Inheritance diagram for RINGMesh::GeogramVolumeMeshBuilder< DIMENSION >:

Public Member Functions
	GeogramVolumeMeshBuilder (VolumeMesh< DIMENSION > &mesh)

index_t	do_create_cells (index_t nb_cells, CellType type) override
	Creates a contiguous chunk of cells of the same type. More...

void	do_assign_cell_tet_mesh (const std::vector< index_t > &tets) override

void	do_set_cell_vertex (const ElementLocalVertex &cell_local_vertex, index_t vertex_id) override
	Sets a vertex of a cell by local vertex index. More...

void	do_set_cell_corner_vertex_index (index_t corner_index, index_t vertex_index) override
	Sets the vertex that a corner is incident to. More...

void	do_set_cell_adjacent (const CellLocalFacet &cell_local_facet, index_t cell_adjacent) override
	Sets the cell adjacent. More...

void	connect_cells () override
	Retrieve the adjacencies. More...

void	do_clear_cells (bool keep_attributes, bool keep_memory) override
	Removes all the cells and attributes. More...

void	do_permute_cells (const std::vector< index_t > &permutation) override
	Applies a permutation to the entities and their attributes. On exit, permutation is modified (used for internal bookkeeping). Applying a permutation permutation is equivalent to: `for( i = 0 ; i < permutation.size() ; i++) { data2[i] = data[permutation[i]] } data = data2 ;` More...

void	do_delete_cells (const std::vector< bool > &to_delete) override
	Deletes a set of cells. More...

Public Member Functions inherited from RINGMesh::VolumeMeshBuilder< DIMENSION >
index_t	create_cells (index_t nb_cells, CellType type)
	Creates a contiguous chunk of cells of the same type. More...

void	assign_cell_tet_mesh (const std::vector< index_t > &tets)

void	set_cell_vertex (const ElementLocalVertex &cell_local_vertex, index_t vertex_id)
	Sets a vertex of a cell by local vertex index. More...

void	set_cell_corner_vertex_index (index_t corner_index, index_t vertex_index)
	Sets the vertex that a corner is incident to. More...

void	set_cell_adjacent (const CellLocalFacet &cell_local_facet, index_t cell_adjacent)
	Sets the cell adjacent. More...

void	clear_cells (bool keep_attributes, bool keep_memory)
	Removes all the cells and attributes. More...

void	permute_cells (const std::vector< index_t > &permutation)
	Applies a permutation to the entities and their attributes. On exit, permutation is modified (used for internal bookkeeping). Applying a permutation permutation is equivalent to: `for( i = 0 ; i < permutation.size() ; i++) { data2[i] = data[permutation[i]] } data = data2 ;` More...

void	delete_cells (const std::vector< bool > &to_delete, bool remove_isolated_vertices)
	Deletes a set of cells. More...

void	remove_isolated_vertices ()

Public Member Functions inherited from RINGMesh::MeshBaseBuilder< DIMENSION >
virtual	~MeshBaseBuilder ()=default

template<>
std::unique_ptr< MeshBaseBuilder< 2 > > RINGMESH_API	create_builder (MeshBase< 2 > &mesh)

template<>
std::unique_ptr< MeshBaseBuilder< 3 > > RINGMESH_API	create_builder (MeshBase< 3 > &mesh)

void	copy (const MeshBase< DIMENSION > &rhs, bool copy_attributes)
	Copy a mesh into this one. More...

virtual void	load_mesh (const std::string &filename)=0

void	clear (bool keep_attributes, bool keep_memory)
	Removes all the entities and attributes of this mesh. More...

void	repair (GEO::MeshRepairMode mode, double colocate_epsilon)
	Fixes some defaults in a mesh. More...

void	set_vertex (index_t v_id, const vecn< DIMENSION > &vertex)
	Sets a point. More...

index_t	create_vertex ()
	Creates a new vertex. More...

index_t	create_vertex (const vecn< DIMENSION > &vertex)
	Creates a new vertex. More...

index_t	create_vertices (index_t nb)
	Creates a contiguous chunk of vertices. More...

void	assign_vertices (const std::vector< double > &point_coordinates)
	set vertex coordinates from a std::vector of coordinates More...

void	delete_vertices (const std::vector< bool > &to_delete)
	Deletes a set of vertices. More...

void	clear_vertices (bool keep_attributes, bool keep_memory)
	Removes all the vertices and attributes. More...

void	permute_vertices (const std::vector< index_t > &permutation)

Private Member Functions
	COMMON_GEOGRAM_MESH_BUILDER_IMPLEMENTATION (GeogramVolumeMesh)

	ringmesh_template_assert_3d (DIMENSION)

Additional Inherited Members
Static Public Member Functions inherited from RINGMesh::VolumeMeshBuilder< DIMENSION >
static std::unique_ptr< VolumeMeshBuilder< DIMENSION > >	create_builder (VolumeMesh< DIMENSION > &mesh)

Static Public Member Functions inherited from RINGMesh::MeshBaseBuilder< DIMENSION >
static std::unique_ptr< MeshBaseBuilder< DIMENSION > >	create_builder (MeshBase< DIMENSION > &mesh)

Protected Member Functions inherited from RINGMesh::VolumeMeshBuilder< DIMENSION >
	VolumeMeshBuilder (VolumeMesh< DIMENSION > &mesh)

Protected Member Functions inherited from RINGMesh::MeshBaseBuilder< DIMENSION >
	MeshBaseBuilder (MeshBase< DIMENSION > &mesh)

void	delete_vertex_nn_search ()

Protected Attributes inherited from RINGMesh::VolumeMeshBuilder< DIMENSION >
VolumeMesh< DIMENSION > &	volume_mesh_

Protected Attributes inherited from RINGMesh::MeshBaseBuilder< DIMENSION >
MeshBase< DIMENSION > &	mesh_base_

Detailed Description

template<index_t DIMENSION>
class RINGMesh::GeogramVolumeMeshBuilder< DIMENSION >

Definition at line 294 of file geogram_mesh_builder.h.

Constructor & Destructor Documentation

◆ GeogramVolumeMeshBuilder()

template<index_t DIMENSION>

RINGMesh::GeogramVolumeMeshBuilder< DIMENSION >::GeogramVolumeMeshBuilder ( VolumeMesh< DIMENSION > & mesh )

inlineexplicit

Definition at line 300 of file geogram_mesh_builder.h.

Member Function Documentation

◆ COMMON_GEOGRAM_MESH_BUILDER_IMPLEMENTATION()

template<index_t DIMENSION>

RINGMesh::GeogramVolumeMeshBuilder< DIMENSION >::COMMON_GEOGRAM_MESH_BUILDER_IMPLEMENTATION ( GeogramVolumeMesh )

private

◆ connect_cells()

template<index_t DIMENSION>

void RINGMesh::GeogramVolumeMeshBuilder< DIMENSION >::connect_cells ( )

inlineoverridevirtual

Retrieve the adjacencies.

Implements RINGMesh::VolumeMeshBuilder< DIMENSION >.

Definition at line 339 of file geogram_mesh_builder.h.

◆ do_assign_cell_tet_mesh()

template<index_t DIMENSION>

void RINGMesh::GeogramVolumeMeshBuilder< DIMENSION >::do_assign_cell_tet_mesh ( const std::vector< index_t > & tets )

inlineoverridevirtual

Implements RINGMesh::VolumeMeshBuilder< DIMENSION >.

Definition at line 312 of file geogram_mesh_builder.h.

◆ do_clear_cells()

template<index_t DIMENSION>

void RINGMesh::GeogramVolumeMeshBuilder< DIMENSION >::do_clear_cells	(	bool	keep_attributes,
		bool	keep_memory
	)

inlineoverridevirtual

Removes all the cells and attributes.

Parameters

[in]	keep_attributes	if true, then all the existing attribute names / bindings are kept (but they are cleared). If false, they are destroyed.
[in]	keep_memory	if true, then memory is kept and can be reused by subsequent mesh entity creations.

Implements RINGMesh::VolumeMeshBuilder< DIMENSION >.

Definition at line 344 of file geogram_mesh_builder.h.

◆ do_create_cells()

template<index_t DIMENSION>

index_t RINGMesh::GeogramVolumeMeshBuilder< DIMENSION >::do_create_cells	(	index_t	nb_cells,
		CellType	type
	)

inlineoverridevirtual

Creates a contiguous chunk of cells of the same type.

Parameters

[in]	nb_cells	number of cells to create
[in]	type	type of the cells to create, one of TETRAEDRON, HEXAEDRON, CellType::PRISM, CellType::PYRAMID, CellType::UNCLASSIFIED.

Returns: the first created cell.

Implements RINGMesh::VolumeMeshBuilder< DIMENSION >.

Definition at line 306 of file geogram_mesh_builder.h.

◆ do_delete_cells()

template<index_t DIMENSION>

void RINGMesh::GeogramVolumeMeshBuilder< DIMENSION >::do_delete_cells ( const std::vector< bool > & to_delete )

inlineoverridevirtual

Deletes a set of cells.

Parameters

[in] to_delete a vector of size nb(). If to_delete[e] is true, then entity e will be destroyed, else it will be kept.

Implements RINGMesh::VolumeMeshBuilder< DIMENSION >.

Definition at line 357 of file geogram_mesh_builder.h.

◆ do_permute_cells()

template<index_t DIMENSION>

void RINGMesh::GeogramVolumeMeshBuilder< DIMENSION >::do_permute_cells ( const std::vector< index_t > & permutation )

inlineoverridevirtual

Applies a permutation to the entities and their attributes. On exit, permutation is modified (used for internal bookkeeping). Applying a permutation permutation is equivalent to: for( i = 0 ; i < permutation.size() ; i++) { data2[i] = data[permutation[i]] } data = data2 ;

Implements RINGMesh::VolumeMeshBuilder< DIMENSION >.

Definition at line 349 of file geogram_mesh_builder.h.

◆ do_set_cell_adjacent()

template<index_t DIMENSION>

void RINGMesh::GeogramVolumeMeshBuilder< DIMENSION >::do_set_cell_adjacent	(	const CellLocalFacet &	cell_local_facet,
		index_t	cell_adjacent
	)

inlineoverridevirtual

Sets the cell adjacent.

Parameters

[in]	cell_local_facet	index of the cell, and local index of the cell facet
[in]	cell_adjacent	adjacent value to set

Implements RINGMesh::VolumeMeshBuilder< DIMENSION >.

Definition at line 332 of file geogram_mesh_builder.h.

◆ do_set_cell_corner_vertex_index()

template<index_t DIMENSION>

void RINGMesh::GeogramVolumeMeshBuilder< DIMENSION >::do_set_cell_corner_vertex_index	(	index_t	corner_index,
		index_t	vertex_index
	)

inlineoverridevirtual

Sets the vertex that a corner is incident to.

Parameters

[in]	corner_index	the corner, in 0.. nb() - 1
[in]	vertex_index	specifies the vertex that corner
	corner_index	is incident to

Implements RINGMesh::VolumeMeshBuilder< DIMENSION >.

Definition at line 326 of file geogram_mesh_builder.h.

◆ do_set_cell_vertex()

template<index_t DIMENSION>

void RINGMesh::GeogramVolumeMeshBuilder< DIMENSION >::do_set_cell_vertex	(	const ElementLocalVertex &	cell_local_vertex,
		index_t	vertex_id
	)

inlineoverridevirtual

Sets a vertex of a cell by local vertex index.

Parameters

[in]	cell_local_vertex	index of the cell,and local index of the vertex in the cell. Local index between 0 and nb_vertices(cell_id) - 1.
[in]	vertex_id	specifies the global index of the vertex
	local_vertex_id	in the cell
	cell_id.	Index between 0 and nb() - 1.

Implements RINGMesh::VolumeMeshBuilder< DIMENSION >.

Definition at line 319 of file geogram_mesh_builder.h.

◆ ringmesh_template_assert_3d()

template<index_t DIMENSION>

RINGMesh::GeogramVolumeMeshBuilder< DIMENSION >::ringmesh_template_assert_3d ( DIMENSION )

private

The documentation for this class was generated from the following file:

D:/dev/RINGMesh/include/ringmesh/mesh/geogram_mesh_builder.h
