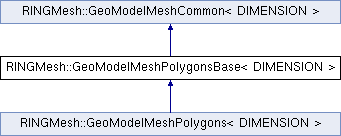

Inheritance diagram for RINGMesh::GeoModelMeshPolygonsBase< DIMENSION >:

Public Member Functions
virtual	~GeoModelMeshPolygonsBase ()

GEO::AttributesManager &	attribute_manager () const

bool	is_initialized () const

void	test_and_initialize () const

index_t	nb () const
	Number of polygons stored. More...

index_t	nb_vertices (index_t polygon) const

index_t	vertex (const ElementLocalVertex &polygon_local_vertex) const

index_t	adjacent (const PolygonLocalEdge &polygon_local_edge) const

index_t	surface (index_t polygon) const

index_t	index_in_surface (index_t polygon) const

std::tuple< PolygonType, index_t >	type (index_t polygon) const

index_t	nb_polygons (PolygonType type=PolygonType::UNDEFINED) const

index_t	nb_polygons (index_t surface, PolygonType type=PolygonType::UNDEFINED) const

index_t	polygon (index_t surface, index_t polygon, PolygonType type=PolygonType::UNDEFINED) const

index_t	nb_triangle () const

index_t	nb_triangle (index_t surface) const

index_t	triangle (index_t surface, index_t triangle) const

index_t	nb_quad () const

index_t	nb_quad (index_t surface) const

index_t	quad (index_t surface, index_t quad) const

index_t	nb_unclassified_polygon () const

index_t	nb_unclassified_polygon (index_t surface) const

index_t	unclassified_polygon (index_t surface, index_t polygon) const

void	clear ()

vecn< DIMENSION >	center (index_t polygon) const

double	area (index_t polygon) const

const NNSearch< DIMENSION > &	nn_search () const

const SurfaceAABBTree< DIMENSION > &	aabb () const
	return the AABB tree for the polygons of the mesh More...

Protected Member Functions
	GeoModelMeshPolygonsBase (GeoModelMesh< DIMENSION > &gmm, GeoModel< DIMENSION > &gm, std::unique_ptr< SurfaceMesh< DIMENSION > > &mesh)

Protected Member Functions inherited from RINGMesh::GeoModelMeshCommon< DIMENSION >
	GeoModelMeshCommon (GeoModelMesh< DIMENSION > &gmm, GeoModel< DIMENSION > &geomodel)

virtual	~GeoModelMeshCommon ()=default

void	set_mesh (MeshBase< DIMENSION > *mesh)

void	save_mesh (const std::string &filename) const

Protected Attributes
std::unique_ptr< SurfaceMesh< DIMENSION > > &	mesh_
	Attached Mesh. More...

std::vector< index_t >	surface_id_
	Vector storing the surface index per polygon. More...

std::vector< index_t >	polygon_id_
	Vector storing the polygon index in surface per polygon. More...

std::vector< index_t >	surface_polygon_ptr_

index_t	nb_triangles_ { 0 }
	Number of triangles in the GeoModelMesh. More...

index_t	nb_quads_ { 0 }
	Number of quads in the GeoModelMesh. More...

index_t	nb_unclassified_polygons_ { 0 }
	Number of unclassified polygons in the GeoModelMesh. More...

Protected Attributes inherited from RINGMesh::GeoModelMeshCommon< DIMENSION >
GeoModelMesh< DIMENSION > &	gmm_
	Attached GeoModelMesh. More...

GeoModel< DIMENSION > &	geomodel_
	Attached GeoModel. More...

MeshBase< DIMENSION > *	mesh_base_
	Attached MeshBase. More...

Private Member Functions
	ringmesh_disable_copy_and_move (GeoModelMeshPolygonsBase)

void	initialize ()

void	resize_polygones_data ()

void	clear_polygones_data ()

void	disconnect_along_lines ()
	Removes polygon adjacencies along lines. More...

void	sort_polygons ()
	Sorts the polygons by surface and type Permute polygons to sort them per surface and per type Example for a mesh with two surfaces and only triangles and quads [TRGL,TRGL, .. , QUAD, QUAD .. , TRGL, TRGL, ... , QUAD, QUAD ..] \| surface 0 \| surface 1 \|. More...

Static Private Attributes
static const std::string	surface_att_name

static const std::string	polygon_surface_att_name

Friends
class	GeoModelMeshBase< DIMENSION >

class	GeoModelMesh< DIMENSION >

Detailed Description

template<index_t DIMENSION>
class RINGMesh::GeoModelMeshPolygonsBase< DIMENSION >

Definition at line 538 of file geomodel_mesh.h.

Constructor & Destructor Documentation

◆ ~GeoModelMeshPolygonsBase()

template<index_t DIMENSION>

RINGMesh::GeoModelMeshPolygonsBase< DIMENSION >::~GeoModelMeshPolygonsBase ( )

virtual

Definition at line 2016 of file geomodel_mesh.cpp.

◆ GeoModelMeshPolygonsBase()

template<index_t DIMENSION>

RINGMesh::GeoModelMeshPolygonsBase< DIMENSION >::GeoModelMeshPolygonsBase	(	GeoModelMesh< DIMENSION > &	gmm,
		GeoModel< DIMENSION > &	gm,
		std::unique_ptr< SurfaceMesh< DIMENSION > > &	mesh
	)

protected

Definition at line 2006 of file geomodel_mesh.cpp.

Member Function Documentation

◆ aabb()

template<index_t DIMENSION>

const SurfaceAABBTree< DIMENSION > & RINGMesh::GeoModelMeshPolygonsBase< DIMENSION >::aabb ( ) const

return the AABB tree for the polygons of the mesh

Definition at line 2544 of file geomodel_mesh.cpp.

◆ adjacent()

template<index_t DIMENSION>

index_t RINGMesh::GeoModelMeshPolygonsBase< DIMENSION >::adjacent ( const PolygonLocalEdge & polygon_local_edge ) const

Get the adjacent polygon index in the GeoModelMesh

Parameters

[in] polygon_local_edge in the polygon

Returns: the adjacent polygon index

Definition at line 2071 of file geomodel_mesh.cpp.

◆ area()

template<index_t DIMENSION>

double RINGMesh::GeoModelMeshPolygonsBase< DIMENSION >::area ( index_t polygon ) const

Get the area of the polygon

Parameters

[in] p the polygon index

Definition at line 2536 of file geomodel_mesh.cpp.

◆ attribute_manager()

template<index_t DIMENSION>

GEO::AttributesManager& RINGMesh::GeoModelMeshPolygonsBase< DIMENSION >::attribute_manager ( ) const

inline

Definition at line 551 of file geomodel_mesh.h.

◆ center()

template<index_t DIMENSION>

vecn< DIMENSION > RINGMesh::GeoModelMeshPolygonsBase< DIMENSION >::center ( index_t polygon ) const

Get the center of the given polygon

Parameters

[in] polygon the polygon index

Definition at line 2528 of file geomodel_mesh.cpp.

◆ clear()

template<index_t DIMENSION>

void RINGMesh::GeoModelMeshPolygonsBase< DIMENSION >::clear ( )

Clear the polygons of the GeoModelMesh

Definition at line 2299 of file geomodel_mesh.cpp.

◆ clear_polygones_data()

template<index_t DIMENSION>

void RINGMesh::GeoModelMeshPolygonsBase< DIMENSION >::clear_polygones_data ( )

private

Clear edge data: surface_id_ and polygon_id_

Definition at line 2029 of file geomodel_mesh.cpp.

◆ disconnect_along_lines()

template<index_t DIMENSION>

void RINGMesh::GeoModelMeshPolygonsBase< DIMENSION >::disconnect_along_lines ( )

private

Removes polygon adjacencies along lines.

Definition at line 2502 of file geomodel_mesh.cpp.

◆ index_in_surface()

template<index_t DIMENSION>

index_t RINGMesh::GeoModelMeshPolygonsBase< DIMENSION >::index_in_surface ( index_t polygon ) const

Get the polygon index in the GeoModelMesh restricted to the surface owing the polygon

Parameters

[in] p the polygon index

Returns: the polygon index varying from 0 to nb_polygons in the surface owing p

Definition at line 2092 of file geomodel_mesh.cpp.

◆ initialize()

template<index_t DIMENSION>

void RINGMesh::GeoModelMeshPolygonsBase< DIMENSION >::initialize ( )

private

Initialize the polygons of the GeoModelMesh and sort them per surface and polygon type Example for a mesh with two surfaces and only triangles and quads [TRGL,TRGL, .. , QUAD, QUAD .. , TRGL, TRGL, ... , QUAD, QUAD ..] | surface 0 | surface 1 |

Definition at line 2319 of file geomodel_mesh.cpp.

◆ is_initialized()

template<index_t DIMENSION>

bool RINGMesh::GeoModelMeshPolygonsBase< DIMENSION >::is_initialized ( ) const

Test if the mesh polygons are initialized

Definition at line 2036 of file geomodel_mesh.cpp.

◆ nb()

template<index_t DIMENSION>

index_t RINGMesh::GeoModelMeshPolygonsBase< DIMENSION >::nb ( ) const

Number of polygons stored.

Definition at line 2042 of file geomodel_mesh.cpp.

◆ nb_polygons() [1/2]

template<index_t DIMENSION>

index_t RINGMesh::GeoModelMeshPolygonsBase< DIMENSION >::nb_polygons ( PolygonType type = PolygonType::UNDEFINED ) const

Get the number of polygons of the corresponding type

Parameters

[in] type the corresponding type

Returns: the number of polygons

Definition at line 2123 of file geomodel_mesh.cpp.

◆ nb_polygons() [2/2]

template<index_t DIMENSION>

index_t RINGMesh::GeoModelMeshPolygonsBase< DIMENSION >::nb_polygons	(	index_t	surface,
		PolygonType	type = `PolygonType::UNDEFINED`
	)		const

Get the number of polygons of the corresponding type in the given surface of the GeoModel

Parameters

[in]	surface	the surface index
[in]	type	the corresponding type

Returns: the number of polygons

Definition at line 2144 of file geomodel_mesh.cpp.

◆ nb_quad() [1/2]

template<index_t DIMENSION>

index_t RINGMesh::GeoModelMeshPolygonsBase< DIMENSION >::nb_quad ( ) const

Get the number of quads in the GeoModelMesh

Returns: the number of quads

Definition at line 2230 of file geomodel_mesh.cpp.

◆ nb_quad() [2/2]

template<index_t DIMENSION>

index_t RINGMesh::GeoModelMeshPolygonsBase< DIMENSION >::nb_quad ( index_t surface ) const

Get the number of quads in the given surface

Parameters

[in] surface the surface index

Returns: the number of quads

Definition at line 2237 of file geomodel_mesh.cpp.

◆ nb_triangle() [1/2]

template<index_t DIMENSION>

index_t RINGMesh::GeoModelMeshPolygonsBase< DIMENSION >::nb_triangle ( ) const

Get the number of triangles in the GeoModelMesh

Returns: the number of triangles

Definition at line 2196 of file geomodel_mesh.cpp.

◆ nb_triangle() [2/2]

template<index_t DIMENSION>

index_t RINGMesh::GeoModelMeshPolygonsBase< DIMENSION >::nb_triangle ( index_t surface ) const

Get the number of triangles in the given surface

Parameters

[in] surface the surface index

Returns: the number of triangles

Definition at line 2203 of file geomodel_mesh.cpp.

◆ nb_unclassified_polygon() [1/2]

template<index_t DIMENSION>

index_t RINGMesh::GeoModelMeshPolygonsBase< DIMENSION >::nb_unclassified_polygon ( ) const

Get the number of unclassified polygons in the GeoModelMesh

Returns: the number of unclassified polygons

Definition at line 2264 of file geomodel_mesh.cpp.

◆ nb_unclassified_polygon() [2/2]

template<index_t DIMENSION>

index_t RINGMesh::GeoModelMeshPolygonsBase< DIMENSION >::nb_unclassified_polygon ( index_t surface ) const

Get the number of polygons in the given surface

Parameters

[in] surface the surface index

Returns: the number of polygons

Definition at line 2271 of file geomodel_mesh.cpp.

◆ nb_vertices()

template<index_t DIMENSION>

index_t RINGMesh::GeoModelMeshPolygonsBase< DIMENSION >::nb_vertices ( index_t polygon ) const

Get the number of vertices in the polygon

Parameters

[in] polygon the polygon index

Returns: the number of vertices

Definition at line 2049 of file geomodel_mesh.cpp.

◆ nn_search()

template<index_t DIMENSION>

const NNSearch< DIMENSION >& RINGMesh::GeoModelMeshPolygonsBase< DIMENSION >::nn_search ( ) const

inline

Definition at line 734 of file geomodel_mesh.h.

◆ polygon()

template<index_t DIMENSION>

index_t RINGMesh::GeoModelMeshPolygonsBase< DIMENSION >::polygon	(	index_t	surface,
		index_t	polygon,
		PolygonType	type = `PolygonType::UNDEFINED`
	)		const

Get the polygon index in the GeoModelMesh

Parameters

[in]	surface	the surface index owing the polygon
[in]	polygon	the polygon index varying from 0 to the number of polygons of type `type` in the surface `surface`.

Warning: polygon is NOT a polygon id of the surface surface. It is pth polygon of type type in the internal storage of the GeoModelMeshPolygons (see GeoModelMeshPolygons::surface_polygon_ptr_).

Note: to find the polygon id of the GeoModelMeshPolygons from a surface and a polygon id of this surface, you need to perform a search using NNSearch and the barycenter of the polygon for instance.

Parameters

[in] type it can specify the polygon type used. For example, if type = QUAD then polygon represents the fth quad in the surface surface and polygon can vary from 0 to nb_quads( s ). If type is PolygonType::ALL, all the polygon types are taken into account.

Returns: the polygon index

Definition at line 2171 of file geomodel_mesh.cpp.

◆ quad()

template<index_t DIMENSION>

index_t RINGMesh::GeoModelMeshPolygonsBase< DIMENSION >::quad	(	index_t	surface,
		index_t	quad
	)		const

Get the polygon index in the GeoModelMesh corresponding to the asked quad in the surface

Parameters

[in]	surface	the surface index
[in]	quad	the quadth quad index varying from 0 to nb_quads( surface )

Returns: the polygon index

Definition at line 2251 of file geomodel_mesh.cpp.

◆ resize_polygones_data()

template<index_t DIMENSION>

void RINGMesh::GeoModelMeshPolygonsBase< DIMENSION >::resize_polygones_data ( )

private

Resize edge data: surface_id_ and polygon_id_

Definition at line 2022 of file geomodel_mesh.cpp.

◆ ringmesh_disable_copy_and_move()

template<index_t DIMENSION>

RINGMesh::GeoModelMeshPolygonsBase< DIMENSION >::ringmesh_disable_copy_and_move ( GeoModelMeshPolygonsBase< DIMENSION > )

private

◆ sort_polygons()

template<index_t DIMENSION>

void RINGMesh::GeoModelMeshPolygonsBase< DIMENSION >::sort_polygons ( )

private

Sorts the polygons by surface and type Permute polygons to sort them per surface and per type Example for a mesh with two surfaces and only triangles and quads [TRGL,TRGL, .. , QUAD, QUAD .. , TRGL, TRGL, ... , QUAD, QUAD ..] | surface 0 | surface 1 |.

Definition at line 2483 of file geomodel_mesh.cpp.

◆ surface()

template<index_t DIMENSION>

index_t RINGMesh::GeoModelMeshPolygonsBase< DIMENSION >::surface ( index_t polygon ) const

Get the surface index in the GeoModel according the polygon index in the GeoModelMesh

Parameters

[in] polygon the polygon index

Returns: the surface index

Definition at line 2084 of file geomodel_mesh.cpp.

◆ test_and_initialize()

template<index_t DIMENSION>

void RINGMesh::GeoModelMeshPolygonsBase< DIMENSION >::test_and_initialize ( ) const

Definition at line 2310 of file geomodel_mesh.cpp.

◆ triangle()

template<index_t DIMENSION>

index_t RINGMesh::GeoModelMeshPolygonsBase< DIMENSION >::triangle	(	index_t	surface,
		index_t	triangle
	)		const

Get the polygon index in the GeoModelMesh corresponding to the asked triangle in the surface

Parameters

[in]	surface	the surface index
[in]	triangle	the triangleth triangle index varying from 0 to nb_triangles( surface )

Returns: the polygon index

Definition at line 2217 of file geomodel_mesh.cpp.

◆ type()

template<index_t DIMENSION>

std::tuple< PolygonType, index_t > RINGMesh::GeoModelMeshPolygonsBase< DIMENSION >::type ( index_t polygon ) const

Get the polygon index in the GeoModelMesh restricted to the surface owing the polygon and its type

Parameters

[in] polygon the polygon index

Returns: the type of the polygon p and the polygon index varying from 0 to nb_polygons of the corresponding type of p in the owing surface.

Definition at line 2102 of file geomodel_mesh.cpp.

◆ unclassified_polygon()

template<index_t DIMENSION>

index_t RINGMesh::GeoModelMeshPolygonsBase< DIMENSION >::unclassified_polygon	(	index_t	surface,
		index_t	polygon
	)		const

Get the polygon index in the GeoModelMesh corresponding to the asked polygon in the surface

Parameters

[in]	surface	the surface index
[in]	polygon	the polygonth polygon index varying from 0 to nb_polygons( s )

Returns: the polygon index

Definition at line 2286 of file geomodel_mesh.cpp.

◆ vertex()

template<index_t DIMENSION>

index_t RINGMesh::GeoModelMeshPolygonsBase< DIMENSION >::vertex ( const ElementLocalVertex & polygon_local_vertex ) const

Get the vertex index of a vertex in a polygon in the GeoModelMesh

Parameters

[in]	p	the polygon index
[in]	vertex	the local vertex index [0, nb_vertices_in_polygon[

Returns: the vertex index

Definition at line 2058 of file geomodel_mesh.cpp.

Friends And Related Function Documentation

◆ GeoModelMesh< DIMENSION >

template<index_t DIMENSION>

friend class GeoModelMesh< DIMENSION >

friend

Definition at line 547 of file geomodel_mesh.h.

◆ GeoModelMeshBase< DIMENSION >

template<index_t DIMENSION>

friend class GeoModelMeshBase< DIMENSION >

friend

Definition at line 546 of file geomodel_mesh.h.

Member Data Documentation

◆ mesh_

template<index_t DIMENSION>

std::unique_ptr< SurfaceMesh< DIMENSION > >& RINGMesh::GeoModelMeshPolygonsBase< DIMENSION >::mesh_

protected

Attached Mesh.

Definition at line 784 of file geomodel_mesh.h.

◆ nb_quads_

template<index_t DIMENSION>

index_t RINGMesh::GeoModelMeshPolygonsBase< DIMENSION >::nb_quads_ { 0 }

protected

Number of quads in the GeoModelMesh.

Definition at line 803 of file geomodel_mesh.h.

◆ nb_triangles_

template<index_t DIMENSION>

index_t RINGMesh::GeoModelMeshPolygonsBase< DIMENSION >::nb_triangles_ { 0 }

protected

Number of triangles in the GeoModelMesh.

Definition at line 801 of file geomodel_mesh.h.

◆ nb_unclassified_polygons_

template<index_t DIMENSION>

index_t RINGMesh::GeoModelMeshPolygonsBase< DIMENSION >::nb_unclassified_polygons_ { 0 }

protected

Number of unclassified polygons in the GeoModelMesh.

Definition at line 805 of file geomodel_mesh.h.

◆ polygon_id_

template<index_t DIMENSION>

std::vector< index_t > RINGMesh::GeoModelMeshPolygonsBase< DIMENSION >::polygon_id_

protected

Vector storing the polygon index in surface per polygon.

Definition at line 789 of file geomodel_mesh.h.

◆ polygon_surface_att_name

template<index_t DIMENSION>

const std::string RINGMesh::GeoModelMeshPolygonsBase< DIMENSION >::polygon_surface_att_name

staticprivate

Initial value:

=

"polygon_surface"

Definition at line 543 of file geomodel_mesh.h.

◆ surface_att_name

template<index_t DIMENSION>

const std::string RINGMesh::GeoModelMeshPolygonsBase< DIMENSION >::surface_att_name

staticprivate

Initial value:

=

"surface"

Definition at line 542 of file geomodel_mesh.h.

◆ surface_id_

template<index_t DIMENSION>

std::vector< index_t > RINGMesh::GeoModelMeshPolygonsBase< DIMENSION >::surface_id_

protected

Vector storing the surface index per polygon.

Definition at line 787 of file geomodel_mesh.h.

◆ surface_polygon_ptr_

template<index_t DIMENSION>

std::vector< index_t > RINGMesh::GeoModelMeshPolygonsBase< DIMENSION >::surface_polygon_ptr_

protected

Vector storing the index of the starting polygon index for a given surface and a given polygon type. For example: the 2nd quad index of the surface index S will be found here: surface_polygon_ptr_[ALL*S + QUAD] + 2

Definition at line 798 of file geomodel_mesh.h.

The documentation for this class was generated from the following files:

D:/dev/RINGMesh/include/ringmesh/geomodel/geomodel_mesh.h
D:/dev/RINGMesh/src/ringmesh/geomodel/geomodel_mesh.cpp

Public Member Functions

Protected Member Functions

Protected Attributes

Private Member Functions

Static Private Attributes

Friends

Detailed Description

template<index_t DIMENSION> class RINGMesh::GeoModelMeshPolygonsBase< DIMENSION >

Constructor & Destructor Documentation

◆ ~GeoModelMeshPolygonsBase()

◆ GeoModelMeshPolygonsBase()

Member Function Documentation

◆ aabb()

◆ adjacent()

◆ area()

◆ attribute_manager()

◆ center()

◆ clear()

◆ clear_polygones_data()

◆ disconnect_along_lines()

◆ index_in_surface()

◆ initialize()

◆ is_initialized()

◆ nb()

◆ nb_polygons() [1/2]

◆ nb_polygons() [2/2]

◆ nb_quad() [1/2]

◆ nb_quad() [2/2]

◆ nb_triangle() [1/2]

◆ nb_triangle() [2/2]

◆ nb_unclassified_polygon() [1/2]

◆ nb_unclassified_polygon() [2/2]

◆ nb_vertices()

◆ nn_search()

◆ polygon()

◆ quad()

◆ resize_polygones_data()

◆ ringmesh_disable_copy_and_move()

◆ sort_polygons()

◆ surface()

◆ test_and_initialize()

◆ triangle()

◆ type()

◆ unclassified_polygon()

◆ vertex()

Friends And Related Function Documentation

◆ GeoModelMesh< DIMENSION >

◆ GeoModelMeshBase< DIMENSION >

Member Data Documentation

◆ mesh_

◆ nb_quads_

◆ nb_triangles_

◆ nb_unclassified_polygons_

◆ polygon_id_

◆ polygon_surface_att_name

◆ surface_att_name

◆ surface_id_

◆ surface_polygon_ptr_

template<index_t DIMENSION>
class RINGMesh::GeoModelMeshPolygonsBase< DIMENSION >
