#include <geogram_mesh_builder.h>

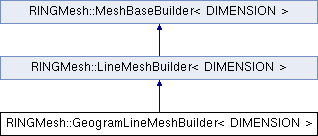

Inheritance diagram for RINGMesh::GeogramLineMeshBuilder< DIMENSION >:

Public Member Functions
	GeogramLineMeshBuilder (LineMesh< DIMENSION > &mesh)

void	do_create_edge (index_t v1_id, index_t v2_id) override
	Create a new edge. More...

index_t	do_create_edges (index_t nb_edges) override
	Creates a contiguous chunk of edges. More...

void	do_set_edge_vertex (const EdgeLocalVertex &edge_local_vertex, index_t vertex_id) override
	Sets a vertex of a edge by local vertex index. More...

void	do_delete_edges (const std::vector< bool > &to_delete) override
	Deletes a set of edges. More...

void	do_clear_edges (bool keep_attributes, bool keep_memory) override
	Removes all the edges and attributes. More...

void	do_permute_edges (const std::vector< index_t > &permutation) override

Public Member Functions inherited from RINGMesh::LineMeshBuilder< DIMENSION >
void	create_edge (index_t v1_id, index_t v2_id)
	Create a new edge. More...

index_t	create_edges (index_t nb_edges)
	Creates a contiguous chunk of edges. More...

void	set_edge_vertex (const EdgeLocalVertex &edge_local_vertex, index_t vertex_id)
	Sets a vertex of a edge by local vertex index. More...

void	delete_edges (const std::vector< bool > &to_delete, bool remove_isolated_vertices)
	Deletes a set of edges. More...

void	clear_edges (bool keep_attributes, bool keep_memory)
	Removes all the edges and attributes. More...

void	permute_edges (const std::vector< index_t > &permutation)

void	remove_isolated_vertices ()
	Remove vertices not connected to any mesh element. More...

Public Member Functions inherited from RINGMesh::MeshBaseBuilder< DIMENSION >
virtual	~MeshBaseBuilder ()=default

template<>
std::unique_ptr< MeshBaseBuilder< 2 > > RINGMESH_API	create_builder (MeshBase< 2 > &mesh)

template<>
std::unique_ptr< MeshBaseBuilder< 3 > > RINGMESH_API	create_builder (MeshBase< 3 > &mesh)

void	copy (const MeshBase< DIMENSION > &rhs, bool copy_attributes)
	Copy a mesh into this one. More...

virtual void	load_mesh (const std::string &filename)=0

void	clear (bool keep_attributes, bool keep_memory)
	Removes all the entities and attributes of this mesh. More...

void	repair (GEO::MeshRepairMode mode, double colocate_epsilon)
	Fixes some defaults in a mesh. More...

void	set_vertex (index_t v_id, const vecn< DIMENSION > &vertex)
	Sets a point. More...

index_t	create_vertex ()
	Creates a new vertex. More...

index_t	create_vertex (const vecn< DIMENSION > &vertex)
	Creates a new vertex. More...

index_t	create_vertices (index_t nb)
	Creates a contiguous chunk of vertices. More...

void	assign_vertices (const std::vector< double > &point_coordinates)
	set vertex coordinates from a std::vector of coordinates More...

void	delete_vertices (const std::vector< bool > &to_delete)
	Deletes a set of vertices. More...

void	clear_vertices (bool keep_attributes, bool keep_memory)
	Removes all the vertices and attributes. More...

void	permute_vertices (const std::vector< index_t > &permutation)

Private Member Functions
	COMMON_GEOGRAM_MESH_BUILDER_IMPLEMENTATION (GeogramLineMesh)

	ringmesh_template_assert_2d_or_3d (DIMENSION)

Additional Inherited Members
Static Public Member Functions inherited from RINGMesh::LineMeshBuilder< DIMENSION >
static std::unique_ptr< LineMeshBuilder >	create_builder (LineMesh< DIMENSION > &mesh)

Static Public Member Functions inherited from RINGMesh::MeshBaseBuilder< DIMENSION >
static std::unique_ptr< MeshBaseBuilder< DIMENSION > >	create_builder (MeshBase< DIMENSION > &mesh)

Protected Member Functions inherited from RINGMesh::LineMeshBuilder< DIMENSION >
	LineMeshBuilder (LineMesh< DIMENSION > &mesh)

Protected Member Functions inherited from RINGMesh::MeshBaseBuilder< DIMENSION >
	MeshBaseBuilder (MeshBase< DIMENSION > &mesh)

void	delete_vertex_nn_search ()

Protected Attributes inherited from RINGMesh::LineMeshBuilder< DIMENSION >
LineMesh< DIMENSION > &	line_mesh_

Protected Attributes inherited from RINGMesh::MeshBaseBuilder< DIMENSION >
MeshBase< DIMENSION > &	mesh_base_

Detailed Description

template<index_t DIMENSION>
class RINGMesh::GeogramLineMeshBuilder< DIMENSION >

Definition at line 135 of file geogram_mesh_builder.h.

Constructor & Destructor Documentation

◆ GeogramLineMeshBuilder()

template<index_t DIMENSION>

RINGMesh::GeogramLineMeshBuilder< DIMENSION >::GeogramLineMeshBuilder ( LineMesh< DIMENSION > & mesh )

inlineexplicit

Definition at line 141 of file geogram_mesh_builder.h.

Member Function Documentation

◆ COMMON_GEOGRAM_MESH_BUILDER_IMPLEMENTATION()

template<index_t DIMENSION>

RINGMesh::GeogramLineMeshBuilder< DIMENSION >::COMMON_GEOGRAM_MESH_BUILDER_IMPLEMENTATION ( GeogramLineMesh )

private

◆ do_clear_edges()

template<index_t DIMENSION>

void RINGMesh::GeogramLineMeshBuilder< DIMENSION >::do_clear_edges	(	bool	keep_attributes,
		bool	keep_memory
	)

inlineoverridevirtual

Removes all the edges and attributes.

Parameters

[in]	keep_attributes	if true, then all the existing attribute names / bindings are kept (but they are cleared). If false, they are destroyed.
[in]	keep_memory	if true, then memory is kept and can be reused by subsequent mesh entity creations.

Implements RINGMesh::LineMeshBuilder< DIMENSION >.

Definition at line 171 of file geogram_mesh_builder.h.

◆ do_create_edge()

template<index_t DIMENSION>

void RINGMesh::GeogramLineMeshBuilder< DIMENSION >::do_create_edge	(	index_t	v1_id,
		index_t	v2_id
	)

inlineoverridevirtual

Create a new edge.

Parameters

[in]	v1_id	index of the starting vertex.
[in]	v2_id	index of the ending vertex.

Implements RINGMesh::LineMeshBuilder< DIMENSION >.

Definition at line 147 of file geogram_mesh_builder.h.

◆ do_create_edges()

template<index_t DIMENSION>

index_t RINGMesh::GeogramLineMeshBuilder< DIMENSION >::do_create_edges ( index_t nb_edges )

inlineoverridevirtual

Creates a contiguous chunk of edges.

Parameters

[in] nb_edges number of edges to create

Returns: the index of the first edge

Implements RINGMesh::LineMeshBuilder< DIMENSION >.

Definition at line 152 of file geogram_mesh_builder.h.

◆ do_delete_edges()

template<index_t DIMENSION>

void RINGMesh::GeogramLineMeshBuilder< DIMENSION >::do_delete_edges ( const std::vector< bool > & to_delete )

inlineoverridevirtual

Deletes a set of edges.

Parameters

[in] to_delete a vector of size nb(). If to_delete[e] is true, then entity e will be destroyed, else it will be kept.

Implements RINGMesh::LineMeshBuilder< DIMENSION >.

Definition at line 164 of file geogram_mesh_builder.h.

◆ do_permute_edges()

template<index_t DIMENSION>

void RINGMesh::GeogramLineMeshBuilder< DIMENSION >::do_permute_edges ( const std::vector< index_t > & permutation )

inlineoverridevirtual

Implements RINGMesh::LineMeshBuilder< DIMENSION >.

Definition at line 176 of file geogram_mesh_builder.h.

◆ do_set_edge_vertex()

template<index_t DIMENSION>

void RINGMesh::GeogramLineMeshBuilder< DIMENSION >::do_set_edge_vertex	(	const EdgeLocalVertex &	edge_local_vertex,
		index_t	vertex_id
	)

inlineoverridevirtual

Sets a vertex of a edge by local vertex index.

Parameters

[in]	edge_local_vertex	index of the edge and local index of the vertex in the edge. Local index between 0 and nb_vertices(cell_id) - 1.
[in]	vertex_id	specifies the vertex
	local_vertex_id	of edge
	edge_id.	Index between 0 and nb() - 1.

Implements RINGMesh::LineMeshBuilder< DIMENSION >.

Definition at line 157 of file geogram_mesh_builder.h.

◆ ringmesh_template_assert_2d_or_3d()

template<index_t DIMENSION>

RINGMesh::GeogramLineMeshBuilder< DIMENSION >::ringmesh_template_assert_2d_or_3d ( DIMENSION )

private

The documentation for this class was generated from the following file:

D:/dev/RINGMesh/include/ringmesh/mesh/geogram_mesh_builder.h
