#include <geomodel_mesh.h>

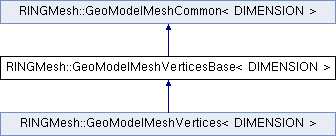

Inheritance diagram for RINGMesh::GeoModelMeshVerticesBase< DIMENSION >:

Classes
class	GeoModelVertexMapper

Public Member Functions
GEO::AttributesManager &	attribute_manager () const

bool	is_initialized () const

void	test_and_initialize () const

index_t	nb () const
	Number of non colocated vertices stored. More...

const vecn< DIMENSION > &	vertex (index_t v) const
	Coordinates of a vertex of the GeoModel. More...

index_t	index (const vecn< DIMENSION > &p) const
	Returns the index of the given vertex in the geomodel. More...

index_t	geomodel_vertex_id (const gmme_id &mesh_entity, index_t entity_vertex_index=0) const
	Get the GeoModelMesh index of a GeoModelMeshEntity vertex from its index in that GeoModelMeshEntity. More...

index_t	geomodel_vertex_id (const gmme_id &mesh_entity, const ElementLocalVertex &element_local_vertex) const
	Get the GeoModelMesh index of a GeoModelMeshEntity vertex from its index in that GeoModelMeshEntity. More...

std::vector< index_t >	mesh_entity_vertex_id (const gmme_id &mesh_entity, index_t geomodel_vertex_id) const
	Get the GeoModelMeshEntity vertices from its index in the GeoModelMesh. More...

const std::vector< GMEVertex > &	gme_vertices (index_t v) const
	Get the vertices in GeoModelEntity corresponding to the given unique vertex. More...

std::vector< GMEVertex >	gme_type_vertices (const MeshEntityType &entity_type, index_t vertex) const
	Get the vertex indices in the specified MeshEntity type corresponding to the given unique vertex. More...

index_t	add_vertex (const vecn< DIMENSION > &point)
	To use when building the geomodel by first adding its vertices. More...

index_t	add_vertices (const std::vector< vecn< DIMENSION > > &points)

void	update_point (index_t v, const vecn< DIMENSION > &point)
	Set the point coordinates of all the vertices that share this unique vertex, including the unique vertex itself. More...

void	update_vertex_mapping (const gmme_id &entity_id, index_t entity_vertex_index, index_t geomodel_vertex_index)

virtual void	clear ()
	Clear the vertices - clear the gme_vertices_ - clear global vertex information in the all BMME. More...

void	unbind_geomodel_vertex_map (const gmme_id &mesh_entity_id)

void	bind_geomodel_vertex_map (const gmme_id &mesh_entity_id)

const NNSearch< DIMENSION > &	nn_search () const

void	remove_colocated ()
	Remove colocated vertices. More...

void	erase_vertices (std::vector< index_t > &to_delete)
	Delete vertices for which to_delete[i] != i The global vertices are deleted, gme_vertices_ is updated and the geomodel_vertx_id in the GeoModelMeshEntity of the GeoModel are updated too. More...

Protected Member Functions
	GeoModelMeshVerticesBase (GeoModelMesh< DIMENSION > &gmm, GeoModel< DIMENSION > &gm, std::unique_ptr< PointSetMesh< DIMENSION > > &mesh)

virtual index_t	nb_total_vertices () const
	return the number of all vertices it is computed summing all entities.nb(). More...

virtual index_t	fill_vertices ()

void	fill_vertices_for_entity_type (const GeoModel< DIMENSION > &M, const MeshEntityType &entity_type, index_t &count)

Protected Member Functions inherited from RINGMesh::GeoModelMeshCommon< DIMENSION >
	GeoModelMeshCommon (GeoModelMesh< DIMENSION > &gmm, GeoModel< DIMENSION > &geomodel)

virtual	~GeoModelMeshCommon ()=default

void	set_mesh (MeshBase< DIMENSION > *mesh)

void	save_mesh (const std::string &filename) const

Protected Attributes
std::unique_ptr< PointSetMesh< DIMENSION > > &	mesh_
	Attached Mesh. More...

GeoModelVertexMapper	vertex_mapper_
	Mapper from/to GeoModelMeshEntity vertices. More...

Protected Attributes inherited from RINGMesh::GeoModelMeshCommon< DIMENSION >
GeoModelMesh< DIMENSION > &	gmm_
	Attached GeoModelMesh. More...

GeoModel< DIMENSION > &	geomodel_
	Attached GeoModel. More...

MeshBase< DIMENSION > *	mesh_base_
	Attached MeshBase. More...

Private Member Functions
void	initialize ()
	Initialize the vertices from the vertices of the GeoModel Corners, Lines, Surfaces and Regions. More...

Friends
class	GeoModelMeshWells< DIMENSION >

class	GeoModelMeshEdges< DIMENSION >

class	GeoModelMeshPolygonsBase< DIMENSION >

class	GeoModelMeshCells< DIMENSION >

Detailed Description

template<index_t DIMENSION>
class RINGMesh::GeoModelMeshVerticesBase< DIMENSION >

Definition at line 109 of file geomodel_mesh.h.

Constructor & Destructor Documentation

◆ GeoModelMeshVerticesBase()

template<index_t DIMENSION>

RINGMesh::GeoModelMeshVerticesBase< DIMENSION >::GeoModelMeshVerticesBase	(	GeoModelMesh< DIMENSION > &	gmm,
		GeoModel< DIMENSION > &	gm,
		std::unique_ptr< PointSetMesh< DIMENSION > > &	mesh
	)

protected

Definition at line 427 of file geomodel_mesh.cpp.

Member Function Documentation

◆ add_vertex()

template<index_t DIMENSION>

index_t RINGMesh::GeoModelMeshVerticesBase< DIMENSION >::add_vertex ( const vecn< DIMENSION > & point )

To use when building the geomodel by first adding its vertices.

Returns: the first index of created vertices

Warning: The client is responsible for setting the mapping between the points of the GeoModelEntity and the unique vertex

Definition at line 655 of file geomodel_mesh.cpp.

◆ add_vertices()

template<index_t DIMENSION>

index_t RINGMesh::GeoModelMeshVerticesBase< DIMENSION >::add_vertices ( const std::vector< vecn< DIMENSION > > & points )

Definition at line 666 of file geomodel_mesh.cpp.

◆ attribute_manager()

template<index_t DIMENSION>

GEO::AttributesManager& RINGMesh::GeoModelMeshVerticesBase< DIMENSION >::attribute_manager ( ) const

inline

Definition at line 118 of file geomodel_mesh.h.

◆ bind_geomodel_vertex_map()

template<index_t DIMENSION>

void RINGMesh::GeoModelMeshVerticesBase< DIMENSION >::bind_geomodel_vertex_map ( const gmme_id & mesh_entity_id )

Definition at line 569 of file geomodel_mesh.cpp.

◆ clear()

template<index_t DIMENSION>

void RINGMesh::GeoModelMeshVerticesBase< DIMENSION >::clear ( )

virtual

Clear the vertices - clear the gme_vertices_ - clear global vertex information in the all BMME.

Warning: Not stable - crashes if attributes are still bound

Reimplemented in RINGMesh::GeoModelMeshVertices< 3 >.

Definition at line 550 of file geomodel_mesh.cpp.

◆ erase_vertices()

template<index_t DIMENSION>

void RINGMesh::GeoModelMeshVerticesBase< DIMENSION >::erase_vertices ( std::vector< index_t > & to_delete )

Delete vertices for which to_delete[i] != i The global vertices are deleted, gme_vertices_ is updated and the geomodel_vertx_id in the GeoModelMeshEntity of the GeoModel are updated too.

Parameters

[in,out] to_delete can be NO_ID or give the index of a kept vertex with which information should be merged. It is recycled to give the mapping between old and new vertex indices

Precondition: to_delete[ v ] is either NO_ID, or is equal or inferior to v

Definition at line 737 of file geomodel_mesh.cpp.

◆ fill_vertices()

template<index_t DIMENSION>

index_t RINGMesh::GeoModelMeshVerticesBase< DIMENSION >::fill_vertices ( )

protectedvirtual

Reimplemented in RINGMesh::GeoModelMeshVertices< 3 >.

Definition at line 537 of file geomodel_mesh.cpp.

◆ fill_vertices_for_entity_type()

template<index_t DIMENSION>

void RINGMesh::GeoModelMeshVerticesBase< DIMENSION >::fill_vertices_for_entity_type	(	const GeoModel< DIMENSION > &	M,
		const MeshEntityType &	entity_type,
		index_t &	count
	)

protected

Definition at line 466 of file geomodel_mesh.cpp.

◆ geomodel_vertex_id() [1/2]

template<index_t DIMENSION>

index_t RINGMesh::GeoModelMeshVerticesBase< DIMENSION >::geomodel_vertex_id	(	const gmme_id &	mesh_entity,
		index_t	entity_vertex_index = `0`
	)		const

Get the GeoModelMesh index of a GeoModelMeshEntity vertex from its index in that GeoModelMeshEntity.

Parameters

[in]	mesh_entity	GeoModelMeshEntity that vertex belongs to
[in]	entity_vertex_index	index of the query vertex in the GeoModelMeshEntity

Returns: if found the vertex index in the geomodel, else NO_ID.

Definition at line 607 of file geomodel_mesh.cpp.

◆ geomodel_vertex_id() [2/2]

template<index_t DIMENSION>

index_t RINGMesh::GeoModelMeshVerticesBase< DIMENSION >::geomodel_vertex_id	(	const gmme_id &	mesh_entity,
		const ElementLocalVertex &	element_local_vertex
	)		const

Get the GeoModelMesh index of a GeoModelMeshEntity vertex from its index in that GeoModelMeshEntity.

Parameters

[in]	mesh_entity	GeoModelMeshEntity that vertex belongs to
[in]	element_local_vertex	local vertex in the element

Returns: if found the vertex index in the geomodel, else NO_ID.

Definition at line 616 of file geomodel_mesh.cpp.

◆ gme_type_vertices()

template<index_t DIMENSION>

std::vector< GMEVertex > RINGMesh::GeoModelMeshVerticesBase< DIMENSION >::gme_type_vertices	(	const MeshEntityType &	entity_type,
		index_t	vertex
	)		const

Get the vertex indices in the specified MeshEntity type corresponding to the given unique vertex.

Definition at line 647 of file geomodel_mesh.cpp.

◆ gme_vertices()

template<index_t DIMENSION>

const std::vector< GMEVertex > & RINGMesh::GeoModelMeshVerticesBase< DIMENSION >::gme_vertices ( index_t v ) const

Get the vertices in GeoModelEntity corresponding to the given unique vertex.

Parameters

[in] vertex Vertex index in the geomodel

Returns: Corresponding GeoModelMeshEntity vertices

Definition at line 639 of file geomodel_mesh.cpp.

◆ index()

template<index_t DIMENSION>

index_t RINGMesh::GeoModelMeshVerticesBase< DIMENSION >::index ( const vecn< DIMENSION > & p ) const

Returns the index of the given vertex in the geomodel.

Parameters

[in] p input point coordinates

Returns: index of the vertex in the geomodel if found (distance < epsilon), otherwise NO_ID

Definition at line 592 of file geomodel_mesh.cpp.

◆ initialize()

template<index_t DIMENSION>

void RINGMesh::GeoModelMeshVerticesBase< DIMENSION >::initialize ( )

private

Initialize the vertices from the vertices of the GeoModel Corners, Lines, Surfaces and Regions.

Fills the mesh_->vertices, computes the vertex mapping and delete colocated vertices

Definition at line 511 of file geomodel_mesh.cpp.

◆ is_initialized()

template<index_t DIMENSION>

bool RINGMesh::GeoModelMeshVerticesBase< DIMENSION >::is_initialized ( ) const

Tests if the mesh vertices are initialized

Definition at line 439 of file geomodel_mesh.cpp.

◆ mesh_entity_vertex_id()

template<index_t DIMENSION>

std::vector< index_t > RINGMesh::GeoModelMeshVerticesBase< DIMENSION >::mesh_entity_vertex_id	(	const gmme_id &	mesh_entity,
		index_t	geomodel_vertex_id
	)		const

Get the GeoModelMeshEntity vertices from its index in the GeoModelMesh.

Parameters

[in]	mesh_entity	Unique id to a GeoModelMeshEntity
[in]	geomodel_vertex_id	Index of the query vertex in the geomodel

Returns: Corresponding GeoModelMeshEntity vertices

Definition at line 628 of file geomodel_mesh.cpp.

◆ nb()

template<index_t DIMENSION>

index_t RINGMesh::GeoModelMeshVerticesBase< DIMENSION >::nb ( ) const

Number of non colocated vertices stored.

Definition at line 576 of file geomodel_mesh.cpp.

◆ nb_total_vertices()

template<index_t DIMENSION>

index_t RINGMesh::GeoModelMeshVerticesBase< DIMENSION >::nb_total_vertices ( ) const

protectedvirtual

return the number of all vertices it is computed summing all entities.nb().

Note: colocated vertices are counted twice or more.

Reimplemented in RINGMesh::GeoModelMeshVertices< 3 >.

Definition at line 498 of file geomodel_mesh.cpp.

◆ nn_search()

template<index_t DIMENSION>

const NNSearch< DIMENSION >& RINGMesh::GeoModelMeshVerticesBase< DIMENSION >::nn_search ( ) const

inline

Definition at line 234 of file geomodel_mesh.h.

◆ remove_colocated()

template<index_t DIMENSION>

void RINGMesh::GeoModelMeshVerticesBase< DIMENSION >::remove_colocated ( )

Remove colocated vertices.

Definition at line 716 of file geomodel_mesh.cpp.

◆ test_and_initialize()

template<index_t DIMENSION>

void RINGMesh::GeoModelMeshVerticesBase< DIMENSION >::test_and_initialize ( ) const

Tests if the mesh vertices need to be initialized, if so initialize them.

Definition at line 445 of file geomodel_mesh.cpp.

◆ unbind_geomodel_vertex_map()

template<index_t DIMENSION>

void RINGMesh::GeoModelMeshVerticesBase< DIMENSION >::unbind_geomodel_vertex_map ( const gmme_id & mesh_entity_id )

Definition at line 562 of file geomodel_mesh.cpp.

◆ update_point()

template<index_t DIMENSION>

void RINGMesh::GeoModelMeshVerticesBase< DIMENSION >::update_point	(	index_t	v,
		const vecn< DIMENSION > &	point
	)

Set the point coordinates of all the vertices that share this unique vertex, including the unique vertex itself.

Parameters

[in]	vertex	Index of the vertex
[in]	point	New coordinates

Definition at line 682 of file geomodel_mesh.cpp.

◆ update_vertex_mapping()

template<index_t DIMENSION>

void RINGMesh::GeoModelMeshVerticesBase< DIMENSION >::update_vertex_mapping	(	const gmme_id &	entity_id,
		index_t	entity_vertex_index,
		index_t	geomodel_vertex_index
	)

Definition at line 703 of file geomodel_mesh.cpp.

◆ vertex()

template<index_t DIMENSION>

const vecn< DIMENSION > & RINGMesh::GeoModelMeshVerticesBase< DIMENSION >::vertex ( index_t v ) const

Coordinates of a vertex of the GeoModel.

Precondition: v < nb()

Definition at line 583 of file geomodel_mesh.cpp.

Friends And Related Function Documentation

◆ GeoModelMeshCells< DIMENSION >

template<index_t DIMENSION>

friend class GeoModelMeshCells< DIMENSION >

friend

Definition at line 116 of file geomodel_mesh.h.

◆ GeoModelMeshEdges< DIMENSION >

template<index_t DIMENSION>

friend class GeoModelMeshEdges< DIMENSION >

friend

Definition at line 114 of file geomodel_mesh.h.

◆ GeoModelMeshPolygonsBase< DIMENSION >

template<index_t DIMENSION>

friend class GeoModelMeshPolygonsBase< DIMENSION >

friend

Definition at line 115 of file geomodel_mesh.h.

◆ GeoModelMeshWells< DIMENSION >

template<index_t DIMENSION>

friend class GeoModelMeshWells< DIMENSION >

friend

Definition at line 113 of file geomodel_mesh.h.

Member Data Documentation

◆ mesh_

template<index_t DIMENSION>

std::unique_ptr< PointSetMesh< DIMENSION > >& RINGMesh::GeoModelMeshVerticesBase< DIMENSION >::mesh_

protected

Attached Mesh.

Definition at line 504 of file geomodel_mesh.h.

◆ vertex_mapper_

template<index_t DIMENSION>

GeoModelVertexMapper RINGMesh::GeoModelMeshVerticesBase< DIMENSION >::vertex_mapper_

protected

Mapper from/to GeoModelMeshEntity vertices.

Definition at line 506 of file geomodel_mesh.h.

The documentation for this class was generated from the following files:

D:/dev/RINGMesh/include/ringmesh/geomodel/geomodel_mesh.h
D:/dev/RINGMesh/src/ringmesh/geomodel/geomodel_mesh.cpp

Classes

Public Member Functions

Protected Member Functions

Protected Attributes

Private Member Functions

Friends

Detailed Description

template<index_t DIMENSION> class RINGMesh::GeoModelMeshVerticesBase< DIMENSION >

Constructor & Destructor Documentation

◆ GeoModelMeshVerticesBase()

Member Function Documentation

◆ add_vertex()

◆ add_vertices()

◆ attribute_manager()

◆ bind_geomodel_vertex_map()

◆ clear()

◆ erase_vertices()

◆ fill_vertices()

◆ fill_vertices_for_entity_type()

◆ geomodel_vertex_id() [1/2]

◆ geomodel_vertex_id() [2/2]

◆ gme_type_vertices()

◆ gme_vertices()

◆ index()

◆ initialize()

◆ is_initialized()

◆ mesh_entity_vertex_id()

◆ nb()

◆ nb_total_vertices()

◆ nn_search()

◆ remove_colocated()

◆ test_and_initialize()

◆ unbind_geomodel_vertex_map()

◆ update_point()

◆ update_vertex_mapping()

◆ vertex()

Friends And Related Function Documentation

◆ GeoModelMeshCells< DIMENSION >

◆ GeoModelMeshEdges< DIMENSION >

◆ GeoModelMeshPolygonsBase< DIMENSION >

◆ GeoModelMeshWells< DIMENSION >

Member Data Documentation

◆ mesh_

◆ vertex_mapper_

template<index_t DIMENSION>
class RINGMesh::GeoModelMeshVerticesBase< DIMENSION >
